ENC-A520EX
- Cooling power:450/500W
- Voltage:Single-phase AC 200V
- Installation method:Ceiling-mount
- Dimensions:H230×W450×D250mm
- Weight:15kg

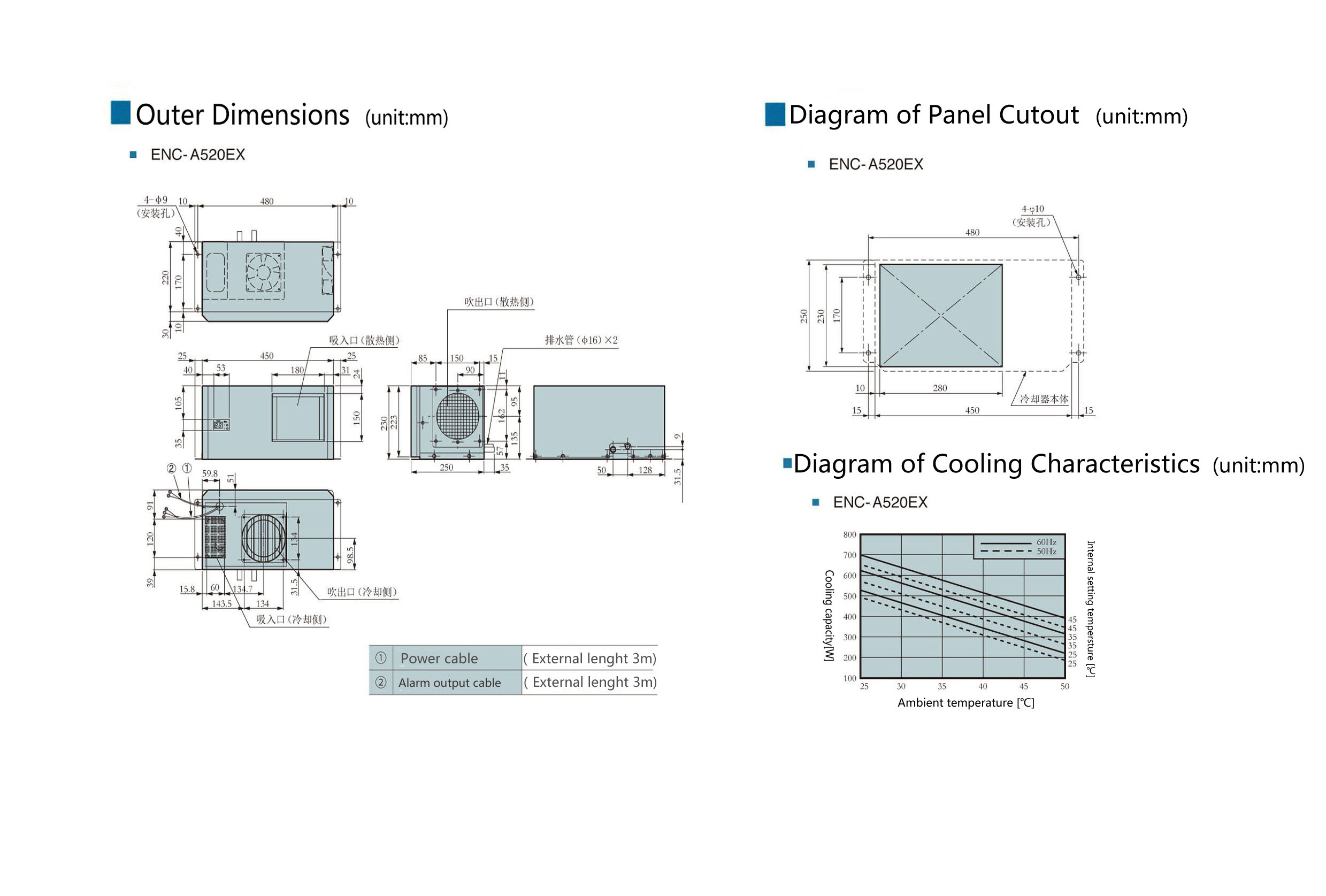

Specifications Installing the dimensional
| ENC-A520EX | (50/60Hz) | ||||||||
| Model | ENC-A520EX | ||||||||
| Performance | Cooling capacity (W) | 450/500 | |||||||
| Setting temperature range(℃) | 25～45 | ||||||||
| Use Area temperature (℃) | 20～50 | ||||||||
| Use Area humidity (%RH) | 10～85(No condensation) | ||||||||
| External | External dimensions (H×W×D)(mm) | 230 × 450 × 250 | |||||||
| Weight (kg) | 15 | ||||||||
| Coating color | Munsell 5Y 7/1 Equivalent color of light beige | ||||||||
| Power Supply | Rated voltage (V) | Single-phase AC200V | |||||||
| Consumption current | Rating (A) | 1.9/1.4 | |||||||
| MAX (A) | 2.0/1.8 | ||||||||
| Starting current (A) | 4.0/4.2 | ||||||||
| Power consumption | Rating (W) | 280/260 | |||||||
| MAX (W) | 360/320 | ||||||||
| Protection | Vibration resistance | Total amplitude:20mm,Frequency:5Hz | |||||||
| Dust and drip protection | Approx.IP54(Internal circulation path) | ||||||||
| Applied Standard | Low voltage directive：EN60335-1 EN60335-2-40/EMC directive：EN64000-6-2 EN61000-6-4 | ||||||||
| Coolant | R-134a 90g | ||||||||
| Noise (dB) | Approx.60/65 | ||||||||
| External Output | Alarm output(a contact:No-voitage resistive load 250V 2A) | ||||||||
| Display | Panel internal temperature/Eror code LED,RUN LED | ||||||||
| Environmental Response | RoHS Directive | ||||||||
Notes：Cooling capacity: the related value when the ambient temperature is 35℃ and the panel intelal temperature is 35℃. (Measurement condition: simple indoor side air enthalpy testing method based on JIS-C-9612)
Rated value：35℃ ambient temperature,ambient humidity RH 40%.
MAX value：Ambient temperature at the time of use is the maximum allowable ambient temperature,when ambient humidity at the time of use is RH 40%.
Please read the instruction carefully before useing and use it correctly.
